2022年05月13日

Agora.io VideoSDKの画面共有(ScreenSharing)実装例(その2)

※2020年の記事です。



現在、Agora.io VideoSDK 画面共有(ScreenSharing)については、サンプルが用意されています。

上記サンプルには、画面共有(ScreenSharing)と映像を両方表示するように実装されていないため、今回は、両方を表示できるサンプルに改造します。

Githubに公開しています。

お役立ち資料ダウンロード

オンライン体験におけるブイキューブの技術サポートのご案内

【図解】システム開発のお手伝い

ブイキューブのソリューションアーキテクトが、寄り添います!
各種ライブ配信システムのアーキテクチャについて わかりやすい構成図にてご紹介!

無料ダウンロード

機能一覧

※追加・変更機能のみ表示
[追加]
・カメラデバイス選択プルダウン →映像用
・マイクデバイス選択プルダウン →マイク用
・CAMERA_JOINボタン →映像のjoinと表示
・CAMERA_LEAVEボタン →映像のleave
・SCREENSHARINGボタン →(join後の)画面共有ダイアログ起動

開発環境

・S VideoSDK(Web)

Agora.io VideoSDK 映像と画面共有の両方を表示する実装例

実装のポイント

映像、画面共有(ScreenSharing)の両方を表示するには、映像、画面共有がそれぞれjoinし、streamを作成することがポイントです。

各種デバイス選択の追加

はじめに、カメラデバイスの選択、マイクデバイスの選択プルダウンを追加します。

./index.html
<div>
      <div>
       <select name="microphoneId" id="microphoneId"></select>
      </div>
      <div>
       <select name="cameraId" id="cameraId"></select>
      </div>
    </div>


各種ボタンの追加

次に、今回追加するボタンを追加します。

./index.html
<button class="btn btn-raised btn-primary waves-effect waves-light" id="camera_join">CAMERA_JOIN</button>
    <button class="btn btn-raised btn-primary waves-effect waves-light" id="camera_leave">CAMERA_LEAVE</button>
    <button class="btn btn-raised btn-primary waves-effect waves-light" id="screensharing">SCREENSHARING</button>



各種ボタンクリック時

次に、今回追加するボタンをクリックした時の処理を追加します。

/src/index.js
  $("#camera_join").on("click", function (e) {
        e.preventDefault();
        console.log("camera_join")
        const params = serializeFormData();
        if (validator(params, fields)) {
           rtc.camera_join(params);
        }
      })

      $("#camera_leave").on("click", function (e) {
        e.preventDefault();
        console.log("camera_leave")
        const params = serializeFormData();
        if (validator(params, fields)) {
           rtc.camera_leave();
        }
      })

      $("#screensharing").on("click", function (e) {
        e.preventDefault();
        console.log("screensharing")
        const params = serializeFormData();
        if (validator(params, fields)) {
          rtc.screensharing(params);
        }
      })


CAMERA_JOINボタンクリック時の詳細処理
/src/rtc-client.js
  camera_join(data){
        console.log("camera_join");

         this._client2 = AgoraRTC.createClient({mode: data.mode, codec: data.codec});
         this._params2 = data;

         // init client
         this._client2.init(data.appID, () => {
         console.log("init success");
         this._client2.join(data.token ? data.token : null, data.channel, data.uid ? data.uid : null, (uid) => {
           this._params2.uid = uid;
           this._uid2 = uid;
           Toast.notice("join channel: " + data.channel + " success, uid: " + uid);
           console.log("join channel: " + data.channel + " success, uid: " + uid);
           this._joined2 = true;

           console.log(data.microphoneId);
           console.log(data.cameraId);

              this._localStream2 = AgoraRTC.createStream({streamID: uid, audio: true, cameraId: data.cameraId, microphoneId: data.microphoneId, video: true, screen: false});

              this._localStream2.setVideoProfile('720p_3');
              // The user has granted access to the camera and mic.
              this._localStream2.on("accessAllowed",() => {
                console.log("accessAllowed");
              });

              // The user has denied access to the camera and mic.
              this._localStream2.on("accessDenied", () => {
                console.log("accessDenied");
              });

              this._localStream2.init (() => {
              console.log("getUserMedia successfully");
              this._localStream2.play("local_stream", {fit: "cover"})
              this._client2.publish(this._localStream2,  (err) => {
                console.log("Publish local stream error: " + err);
              });
              this._client2.on('stream-published',  (evt) => {
                console.log("Publish local stream successfully");
              });
            }, (err) => {
              console.log("getUserMedia failed", err);
            })
          }, (err) => {
            Toast.error("client join failed, please open console see more detail")
            console.error("client join failed", err)
          })
        }, (err) => {
          Toast.error("client init failed, please open console see more detail")
          console.error(err);
        });

      }


CAMERA_LEAVEボタンクリック時の詳細処理
/src/rtc-client.js
  camera_leave () {
        this._client2.leave(() => {
          // close stream
          this._localStream2.close();
          // stop stream
          this._localStream2.stop();
          while (this._remoteStreams.length > 0) {
            const stream = this._remoteStreams.shift();
            const id = stream.getId()
            stream.stop();
            removeView(id);
          }
          this._localStream2 = null;
          this._remoteStreams = [];
          this._client2 = null;
          console.log("client2 leaves channel success");
          Toast.notice("leave success")
        }, (err) => {
          console.log("channel leave failed");
          Toast.error("leave success")
          console.error(err);
        })
      }

SCREENSHARINGボタンクリック時の詳細処理
/src/rtc-client.js
  screensharing(data){
        console.log("screensharing start");

        // create local stream
        const streamSpec = {
          streamID: this._params.uid,
          audio: false,
          video: false,
          screen: true,
          microphoneId: data.microphoneId,
          cameraId: data.cameraId
        }

        // Your firefox need use support mediaSource at least
        if (isFirefox()) {
          streamSpec.mediaSource = 'window';
        } else if (!isCompatibleChrome()) {
          // before chrome 72 need install chrome extensions
          // You can download screen share plugin here https://chrome.google.com/webstore/detail/agora-web-screensharing/minllpmhdgpndnkomcoccfekfegnlikg
          streamSpec.extensionId = 'minllpmhdgpndnkomcoccfekfegnlikg';
        }

        this._localStream = AgoraRTC.createStream(streamSpec);

        // set screen sharing video resolution
        if (data.screenShareResolution != 'default') {
          this._localStream.setScreenProfile(data.screenShareResolution);
          console.log("set screen profile", data.screenShareResolution);
        }

        // Occurs when sdk emit error
        this._localStream.on("error", (evt) => {
          Toast.error("error", JSON.stringify([evt]))
        })

        // Occurs when a you stop screen sharing
        this._localStream.on("stopScreenSharing", (evt) => {
          this._localStream.stop();
          this._showProfile = false;
          Toast.notice("stop screen sharing")
        })

        // init local stream
        this._localStream.init(() => {
          console.log("init local stream success");
          // play stream with html element id "local_stream"
          this._localStream.play("local_stream", {fit: "cover"})
          // run callback
          resolve();
        }, (err) =>  {
          Toast.error("stream init failed, please open console see more detail")
          console.error("init local stream failed ", err);
          if (isFirefox()) {
            console.error('Failed to start screen sharing, maybe firefox not support mediaSource, please upgrade your firefox to latest version')
            return;
          }
          if (!isCompatibleChrome()) {
            console.error('Failed to start screen sharing, maybe chrome extension was not installed properly, you can get it from https://chrome.google.com/webstore/detail/minllpmhdgpndnkomcoccfekfegnlikg');
            return;
          }
        })
        console.log("screensharing success");
        return;
      }


※参考サイト
Agora.io VideoSDK 画面共有(ScreenSharing)実装例(その1)

動作確認

それでは動作確認してみます。

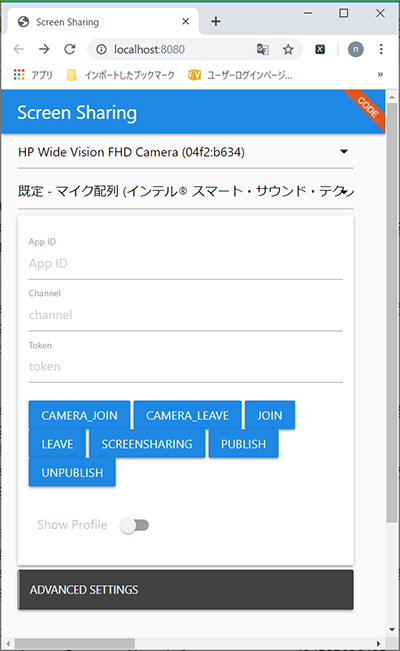

1.画面起動

画面を起動します。(npm install、npm run devを実行しlocalhost:8080を表示)

2.各種選択・入力

カメラ、マイクを選択し、appId、channelを入力します。

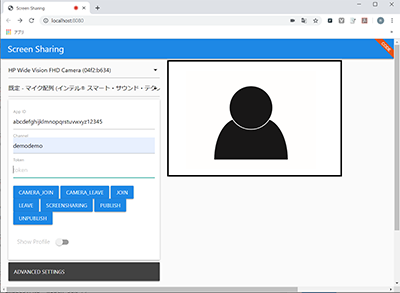

3.カメラ映像のJoin

映像が表示されます。

(注)イメージの映像は実際のカメラ映像ではありません。

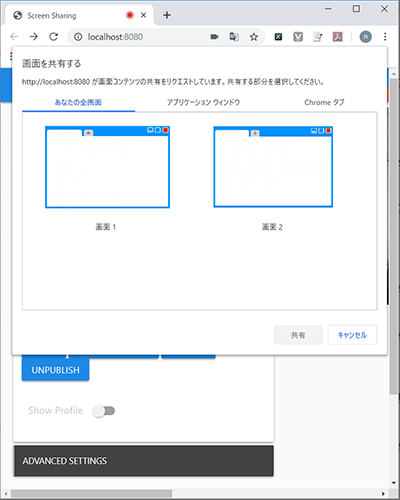

4.画面共有分のJoin

Joinをクリックします。

画面共有ダイアログが表示されます。(キャンセルして閉じておきます)

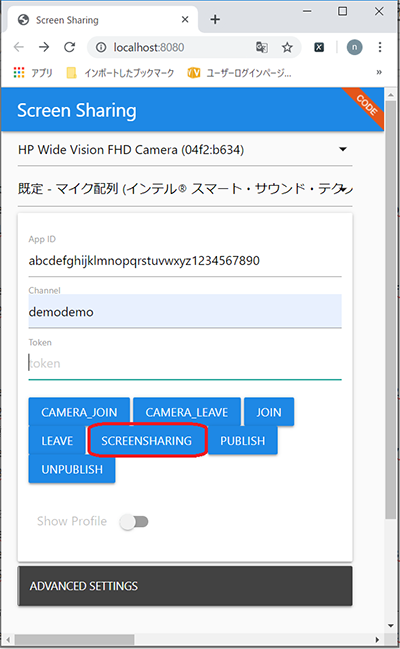

5.画面共有の再表示

SCREENSHARINGボタンをクリックし、再び画面共有ダイアログを起動します。

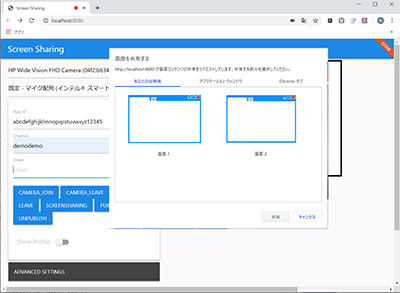

画面共有ダイアログが表示されます。

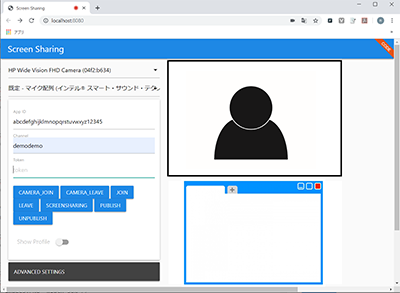

6.画面共有の開始

共有ボタンをクリックし、共有を開始します。

映像と画面共有を表示させることができました。
